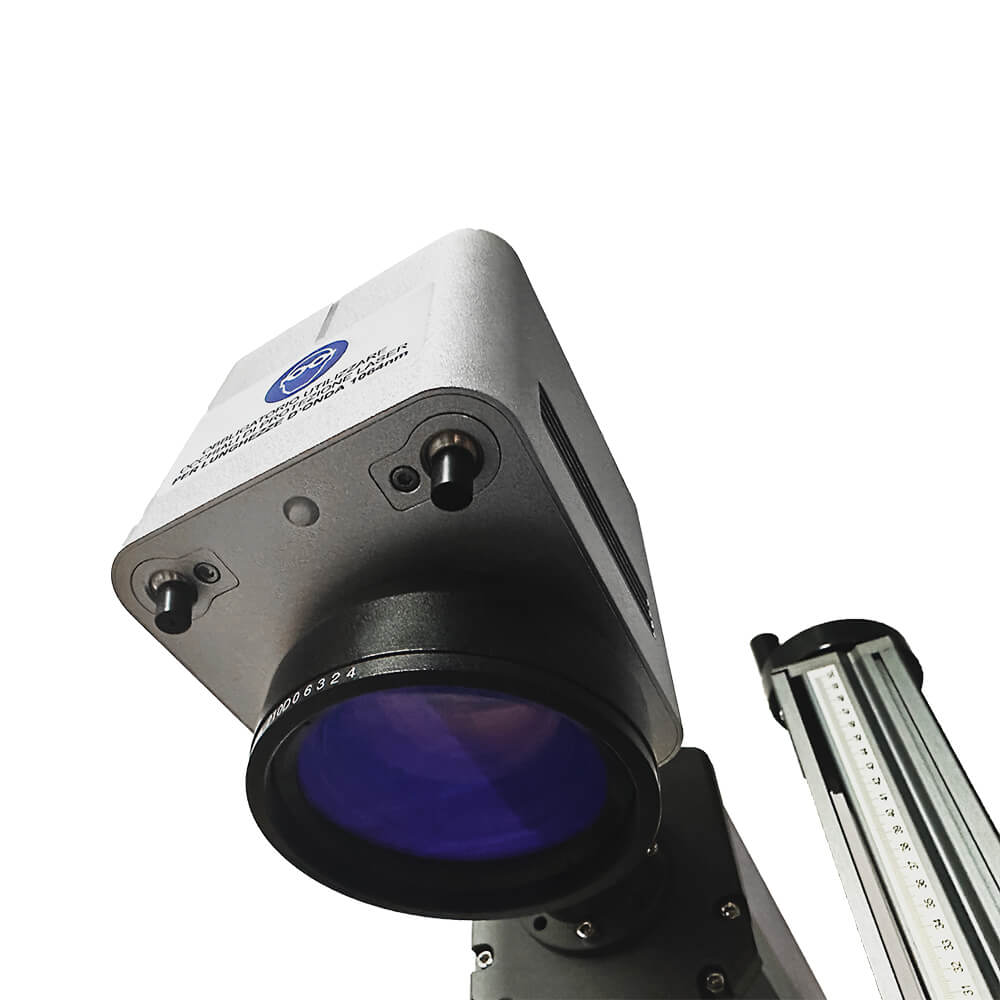

JPT MOPA Fiber Laser Marking M7 30W / M7 60W / M7 100W /M7 200W

Introducing Our RMMP Lineup of JPT MOPA

Fiber Lasers!

MOPA fiber lasers are ideal for engraving and annealing a wide variety of materials, including metals, plastics, leather, slate, and more.

What sets a MOPA fiber laser apart from traditional fiber lasers is the adjustable pulse width. This allows for more precise and crisp engravings, as well as the ability to achieve color markings on metals.

Available Lenses:

two lenses of your choice included .

 70mm x 70mm to 300mm x 300mm (sold separately).

Technical Specifications:

• Adjustable Pulse Width:
• 2ns - 500ns for a broader material application range
• Output Power Options:
• M7 30W / M7 60W / M7 100W /M7 200W
• Pulse Repetition Rate Range:
• 1 - 4000 kHz
• Central Wavelength:
•  1064 nm
• Processing Area:
•  70mm x 70mm to 300mm x 300mm (with appropriate lens)
• Max Marking Speed:
•  7000 mm/s
• Max Engraving Depth (Single Pass):
• ≤ 0.8 mm (30W)
• ≤ 1.5 mm (60W) (depending on material)
• Beam Diameter:
•  7.0 ÷ 0.5 mm
• Beam Quality (M3):
•  ≤ 1.5
• Pulse Duration:
• 2 - 350 ns (30W)
• 2 - 500 ns (60W/100W/200W)

• Max Pulse Energy:
• 0.8 mJ (30W)
• 2.0 mJ (60W/100W/200W)
• Positioning Accuracy: ≤ 0.1 um

Software & System Compatibility:

• Supported Software: EZCAD2, LightBurn, EZCAD 3 optional.
• Operating Systems: Windows XP, Vista, 7, 8, 10,
  11 / macOS

Warranty:

• Laser Source: 2 year warranty
• Other Laser Accessories: 1 year warranty
